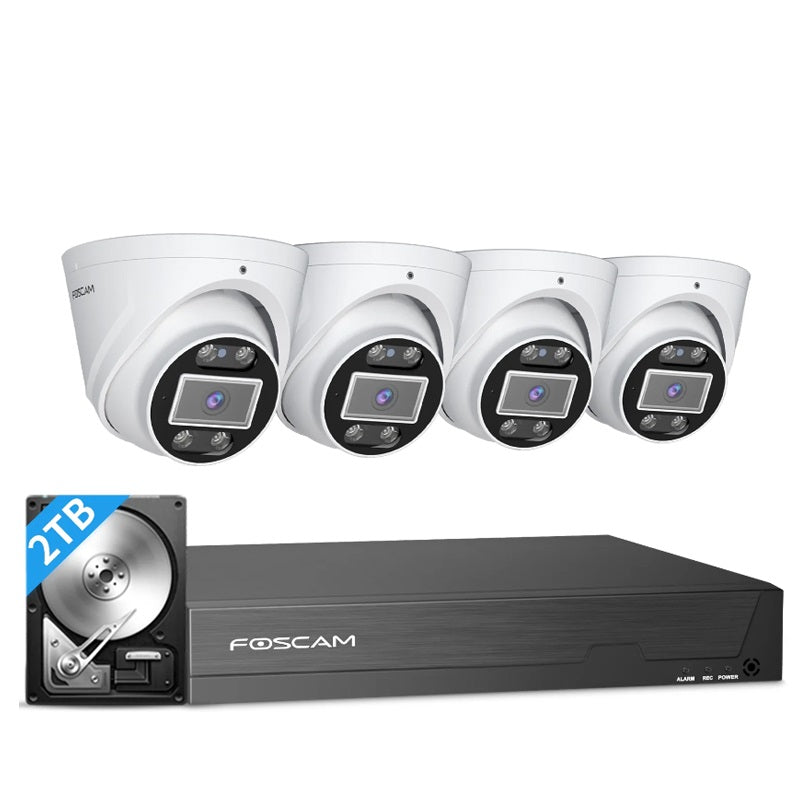

Foscam FN9108E-T4-2T 8 Channel Intelligent 5MP HD Cameras Kit with 2TB HDD and 4pcs 5MP Turret Cameras
Foscam FN9108E-T4-2T 8 Channel Intelligent 5MP HD Cameras Kit with 2TB HDD and 4pcs 5MP Turret Cameras
| ITEMS | FN9108E | |||||
| Video Input | IP Video Input | 8 Channels QHD IP camera input | ||||
| Video Output | HDMI Output | 1×HDMI | ||||
| VGA Output | 1×VGA | |||||
| Display Resolution | 3840x2160，2560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720,1024x768 | |||||
| Recording | Recording Resolution |
Up to 5MP per channel ( 8ch@5MP ) | ||||
| Record Mode | Time Scheduled / Motion Detect | |||||
| Compression Format |
H.264/H.264+ | |||||
| Playback | Synchronous Playback |
8 channels synchronous video playback | ||||
| Playback Mode | Pause / Stop / Slow / Fast/ Frame Play | |||||
| HDD | Capacity | Up to 16TB | ||||
| Network | POE Standard | IEEE 802.3at/af | ||||
| Network Protocol | IP, TCP, UDP, SMTP, DHCP, RTSP | |||||
| External Interface | Network Interface | 1× 10/100 Mbps RJ45 port | ||||
| USB Interface | 2× USB2.0 interface for mouse and external storage | |||||
| Button | 1× Power on/off button,1× Reset button | |||||
| Language | 17 languages | |||||
| Physical and Environmental | Power Supply | DC 48V/2A | ||||
| Dimension(LxWxH) | 255mm*238mm*50mm | |||||
| Net Weight (g) | 880g | |||||
| Operating Temperature | 0°C ~ 55°C (32°F ~ 131°F) | |||||
| Operating Humidity | 20% ~ 85% non-condensing | |||||
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |||||
| Storage Humidity | 0% ~ 90% non-condensing | |||||
| Camera | Model | T5EP | ||||
| Image Sensor | Sensor Type | High Definition Color CMOS Sensor | ||||
| Display Resolution | 5.0M Pixels(3072*1728) | |||||
| Min. Illumination | 0 Lux (With IR Illuminator) | |||||
| Lens | Lens Type | f:4mm,F2.1 | ||||
| Night Vision | 20m | |||||
| Night mode | Manual and automatic modes,when the white light is on, the night vision image is colored | |||||
| Angle of view | Diagonal: 94°, Horizontal: 78°, Vertical: 43.6° | |||||
| Audio | Input/Output | Built-in mic and speaker | ||||
| Audio Compression | PCM/AAC | |||||
| Siren | Support maximum 100dB alarm siren | |||||
| Connectivity | 802.3af PoE | √ | ||||
| Ethernet | RJ45 | |||||
| Other Features | Video Format | H.264/H.264+ | ||||
| Multi-Stream | Dual streams | |||||
| Motion Detection | √ | |||||
| Human Detection | √ | |||||
| Vehicle Detection | √ | |||||
| Day/Night | √ | |||||
| WDR | √ | |||||
| Zoom | 6X digital zoom function | |||||
| Spotlight | √ | |||||
| System Requirements | Operating System | Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), iOS (Foscam app) | ||||
| Smart Phone | iOS,Android,3G/4G/5G Smartphones | |||||
| Physical and Environmental | Waterproof | IP66 | ||||
| Net Weight | 380g | |||||
| Power | Powered by PoE NVR | |||||
| Power Consumption | 5 Watts (Max.) | |||||
| Dimension | φ110*100 mm | |||||
| Certification | FCC、CE、RoHS、IP66 | |||||
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) | |||||
| Operating Humidity | 10% ~ 80% non-condensing | |||||
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |||||
| Storage Humidity | 0% ~ 90% non-condensing | |||||
All equipment supplied by the Company is covered by a Three (3) Year Limited Warranty commencing from the date of purchase.
During the warranty period, the Company warrants that the products shall be free from defects in materials and workmanship under normal use and service. Should any defect arise within the warranty period, the Company will, at its sole discretion, repair or replace the defective product or parts at no additional charge.
This warranty does not apply to damages resulting from misuse, abuse, improper installation, unauthorized modification or repair, accidents, negligence, or normal wear and tear.
Proof of purchase or other valid documentation may be required to obtain warranty service.
This Limited Warranty is non-transferable and applies only to the original purchaser unless otherwise agreed in writing.
