Guarding Vision IP-KIT8662-BR 8 Channel 8MP NVR with 2TB HDD and 8pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit
Guarding Vision IP-KIT8662-BR 8 Channel 8MP NVR with 2TB HDD and 8pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit
Guarding Vision

Guarding Vision IP-KIT8662-BR 8 Channel 8MP NVR with 2TB HDD and 8pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit

Regular price $649.00
Sale price $649.00 Regular price
Unit price
Save
Only 10 left

- Hurry! Limited stock left.
Compare Size guide
Guarding Vision IP-KIT8662-BR 8 Channel 8MP NVR with 2TB HDD and 8pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit

Guarding Vision IP-KIT8662-BR 8 Channel 8MP NVR with 2TB HDD and 8pcs Active Deterrence 6MP Smart Hybrid Light Fixed Turret Camera Kit

Regular price $649.00
Sale price $649.00 Regular price
Unit price
Product description
Limited Warranty Policy
Product reviews

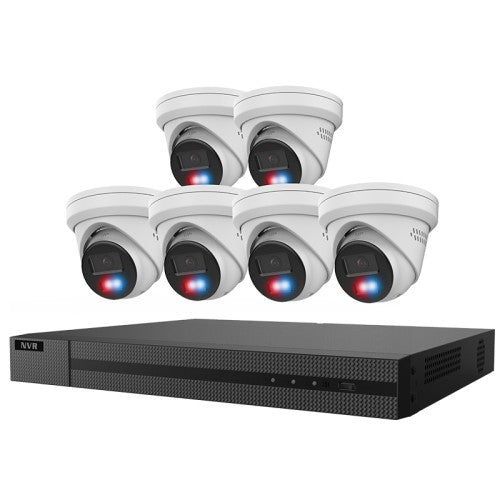

- One 8-channel PoE NVR with decoding up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p

- Six 6MP Smart Hybrid Light fixed turret network cameras with efficient H.265+ compression technology

- 2TB Pre-installed HDD

- 1 network cable for NVR

- Support audio and siren alarm with red and blue flashing light

Number of Channels
8
Human/Vehicle Analysis
4ch
Resolution
Up to 8 MP
Two-Way Audio
1-Channel, RCA (2 V p-p, 1 Kilohm)
Bandwidth
Incoming: 40 Mb/s
Outgoing: 80 Mb/s
Recording Resolution
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI Output Resolution
1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
VGA Output Resolution
1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output
1-Channel, RCA (Linear, 1 Kilohm)
Decoding Formats
H.265+, H.265, H.264+, H.264
Playback Resolution
8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Remote Connection
32
Synchronous Playback
8 Channels
Decoding Capability
1 Channel at 8 MP
3 Channel at 4 MP
6 Channels at 1080p
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
SATA
1 x SATA Interface (Up to 8 TB capacity)
Drive Bays
2
HDD Capacity
8 TB each
HDD Included
2TB
Network Interface
1 x RJ45 100M Self-Adaptive Ethernet Port
USB
2 x USB 2.0
PoE Interface
4 x 100M RJ45 Self-Adaptive Ethernet Ports
PoE Power
≤50 W
PoE Standard
IEEE 802.3af/at
Power Supply
48 VDC 2.5A
Power
<80 W
Power Consumption
≤15 W (Without HDD & Enabling PoE)
Operating Temperature
14 to 131°F / -10 to 55°C
Operating Humidity
10 to 90%
Rack Units
1 RU
Dimensions
15.2 x 12.4 x 2" / 385 x 315 x 52 mm
Weight
5.7 lb / ≤2.6 kg (Without HDD)

Camera
Image Sensor
1/2.4", 6 MP Progressive Scan CMOS
Minimum Illumination
Color: 0.005 Lux (f/1.6 with AGC ON)
B&W: 0 Lux
Shutter Speed
1/100,000 to 1/3 Seconds
Day/Night
IR Cut Filter
Supplement Light Type
IR,White Light, Red and Blue Light (Flashing Light)
Digital Noise Reduction
3D-DNR
WDR
Digital Wide Dynamic Range
3-Axis Adjustment
Horizontal: 0 to 360°
Vertical: 0 to 75°
Rotation: 0 to 360°
Lens
2.8mm
Lens Mount
M12
Aperture
f/1.6
Field of View
Horizontal: 105°
Vertical: 55°
Diagonal: 127°
IR Range
30 m
IR Wavelength
850 nm
Video Compression
Main Stream: H.265+, H.265, H.264+, H.264
Sub-Stream: H.265/H.264/MJPEG
H.264 Profile
Baseline Profile,Main Profile,High Profile
Video Bit Rate
32 kb/s to 16 Mb/s
Region of Interest
One Fixed Region for Main Stream and Sub-Stream
Maximum Resolution
3200 x 1800
Frame Rate
Main Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Sub-Stream: 20 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720
Image Enhancement
BLC, HLC, 3D-DNR
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switching
Auto, Scheduled
Network Storage
Supports NAS (NFS, SMB/CIFS)
Alarm Triggers
Motion Detection, Video Tampering Alarm, Illegal Login
Built-in Speaker
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Built-in Microphone
Yes,1 built-in microphone
Audio Type
Mono sound
Audio Sampling Rate
8 kHz/16 kHz
Environment Noise Filtering
Yes
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP
General Functions
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
API
Open Network Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Simultaneous Live View
Up to 6 Channels
User/Host Level
Up to 32 Users at 3 Host Levels (Admin, Operator, User)
Client APP
iVMS-4200, HiLookVision
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Linkage
Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
Supported Web Browsers
Plug-in required live view: IE 10, IE 11, Local service: Chrome 80+, Firefox 80+, Edge 89+
Communication Interface
1 x RJ45 100M Self-Adaptive Ethernet Port
Operating Temperature
-22 to 122°F / -30 to 60°C
Operating Temperature
0 to 95% (Non-Condensing)
Power Supply
12 VDC ≤25%, PoE (802.3af, Class 3)
Power Consumption and Current Draw
12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.5 W
IP Rating
IP67 IEC 60529-2013
Material of Construction
Metal and Plastic
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Dimensions
4.3 x 3.7" / 110 x 93.2 mm
Weight
0.8 lb / 360 g

All equipment supplied by the Company is covered by a Three (3) Year Limited Warranty commencing from the date of purchase.

During the warranty period, the Company warrants that the products shall be free from defects in materials and workmanship under normal use and service. Should any defect arise within the warranty period, the Company will, at its sole discretion, repair or replace the defective product or parts at no additional charge.

This warranty does not apply to damages resulting from misuse, abuse, improper installation, unauthorized modification or repair, accidents, negligence, or normal wear and tear.

Proof of purchase or other valid documentation may be required to obtain warranty service.

This Limited Warranty is non-transferable and applies only to the original purchaser unless otherwise agreed in writing.
